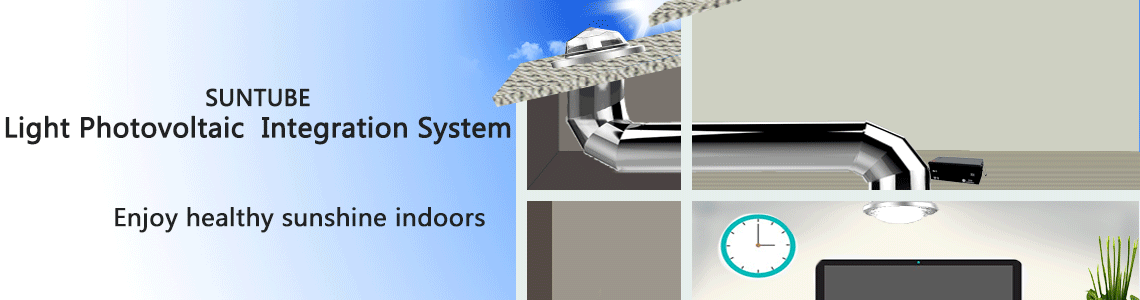

Light Photovoltaic Integration System

  • 　　　　　　　　　　　　
    　　　　　　　　　　　　

    System Principle



    　　Through the outdoor solar cell components to collect sunlight, photovoltaic effect conversion, the light energy into electrical energy stored in the battery for the night to use LED lighting.
    Tubular daylighting and photovoltaic systems combined light conduit solve the problem of lighting systems can’t be used at night, the use of photovoltaic solar power, not only to solve the optical waveguide lighting system at night unable to lighting problems, but also comply with green energy standards.








    System Structure
    Light collector


    　　"SUNTUBE" crystal light collection system has a patent of appearance design（patent of appearance design no. : ZL 2013 3 0314424.1），The top five directions according to the uniform distribution of 15 °, can prevent the dust, self-cleaning effect.
    Inside the light collection system at the top of the thread of direct reduction by scattered light, at noon the light evenly; Lateral intercostal stripe refraction effect, can be in the morning or evening diffuse light refraction collection.
    Technical parameters of diamond concentrator
    　　　　　　　　
    Photovoltaic panels

    Technical parameters of solar panel
    　　　　　　

    Technical parameters of controllerBattery
    　　　　　　

    Technical parameters of Battery
    　　　　　　

    Light guide tube
    　　"SUNTUBE” is still using the tube with corrosion resistance and high reflectivity, five special coating to ensure the efficient transmission of light and stability, with 0º-90º bend, flexible turning, not affected by the building structure.
    　　　　　　　　

    Technical parameters of light guide tube
    　　　　　　　
    Diffuser
    　　Diffuser having a strong transmission and scattering properties, natural light can enter the system to redistribute and uniformly distributed in the room.

    Technical parameters of diffuser
    　　　　　　　
    "SUNTUBE" Diffuser Types
    Lattice diffuser Prismatic Diffuser Thread Diffuser Lampshade Diffuser
    Unique physical structure is conducive to the secondary distribution of incident light, light diffuse uniformity, no glare, bright does not glare beautiful arc shape outline clear, bright and strong consistency Fresnel lens array, a strong three-dimensional, beautiful visual bright Formed outside the arc, beautiful fashion, there is more for high-quality ceiling workplace.
    LED
    　　LED lamps will be installed in the diffuser ring, natural lighting and artificial lighting combined to save space for the ceiling, while at night the light emitted by the lamp can also be used to do outdoor landscape lights.
    　　　　　　　　　　
    Technical parameters of system
    　　　　　　　​
    Feature purpose

    1.Saving electric lighting costs.


    2.Improve the indoor light environment.


    3.Meet the new green building scoring standards.
    4.Enjoy the green healthy sunshine

    Dust mask to add anti-UV ingredients, can effectively filter 99.9% of the UV, the diffuser evenly distributed in the room to optimize the indoor working and living environment, improve work efficiency, reduce fatigue, physical and mental health.
    System Benefits
    • 1.Tubular daylighting system and the effective combination of photovoltaic power generation, take full advantage of solar energy, clean pollution-free;
    •
    • 2.The use of high-quality lithium iron phosphate lithium-ion battery, with a small size, light weight, high temperature, no memory effect, green non-toxic pollution-free, safe and reliable explosion characteristics;
    •
    • 3.Photovoltaic panels used in high-quality single crystal silicon solar panel, high efficiency, durable, long life;
    •
    • 4.Products using electricity complementary intelligent controller, load multiple operating modes, easy to meet customers the freedom to switch operating modes;
    •
    • 5.LED lamp as mains lighting with long service life, energy saving, no flicker, highlighting the performance of low heat.
